XCMT09C
特點：
Case: Black Noryl
Pin: Tin-Plated Copper
規格:
¨Value applying at (rated voltage,2731Hz, 1/2 duty square wave)
◇ Value applying at (2731Hz,sine wave,measuring current 60μA)
Case: Black Noryl
Pin: Tin-Plated Copper
規格:
|
type
|
unit
|
XCMT09B2701P
|
|
◆Min. Sound Output at 10cm
|
dB
|
85
|
|
Rated Voltage
|
v
|
1.5
|
|
Operating Voltage
|
v
|
1~2
|
|
Resonant Frequency
|
Hz
|
2731
|
|
◆Max. Current Consumption
|
mA
|
80
|
|
Coil Resistance
|
Ohm
|
6±1
|
|
◇Coil Impedance
|
Ohm
|
9.5
|
|
Operating Temperature
|
℃
|
-20~+70
|
|
Storage Temperature
|
℃
|
-30~+80
|
|
Weight
|
g
|
0.7
|
◇ Value applying at (2731Hz,sine wave,measuring current 60μA)
尺寸：（單位：mm） |

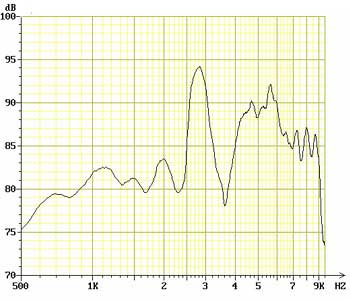

錄放幅頻響應： |
